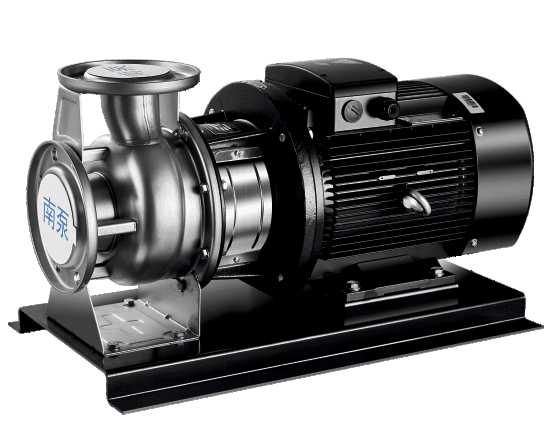

ZS Single-Stage Centrifugal PumpSeries.
Berlington ZS — rated 3 – 200 m³/h at up to 8.8 – 73.7 m. Suitable for water treatment systems and pressure boosting duty in Karnataka installations.
Flow Capacity3 – 200 m³/h
Dynamic Head8.8 – 73.7 m
Drive System1.1 – 22 kW
Thermal Range-10°C ~ +100°C
Installation NotesCheck before
Check before
commissioning.
Material
Wetted parts in Stainless steel. Check compatibility with your fluid before installation — particularly relevant for treated water or chemical exposure duty.
Power Supply
Runs on 220V / 380V. Confirm site supply matches motor nameplate before energising — mismatch is a common first-start issue on Karnataka projects.
Connections
40 – 100 mm flanged or threaded ports. Check shaft alignment before first start when inline-mounted; misalignment causes early seal wear.
Integrated_Applications
01WTP
02Pressure Boosting
03Industrial
